How To Measure Hydraulic Hose Fittings

To thoroughly master the measurement of hydraulic hose joints and avoid those pits, you have to work hard on this professional four-step identification method: First, look at the thread type and distinguish whether it is tapered thread or straight thread. Next, copy the digital caliper and measure the outer diameter of the male thread or the inner diameter of the female thread, making sure to measure the widest or narrowest point. The third step is to use a thread gauge to confirm the pitch or the number of teeth per inch. This will help you clearly understand the very similar standards such as BSPP, NPT or metric DIN. Finally, lock the seal angle with a seat angle gauge. Converting this data into the industry-wide Dash Size ——short for 1/16 inch, for example, -08 is 1/2 inch—— will ensure a seamless fit to international standards and ensure a drip-free connection.

Clear Straight And Tapered Threads

The first step in identification is usually visual observation. A lot of newbies are most likely to roll over here. Taper threads become thinner towards the end and are sealed by a “wedging” action between the teeth when tightened, so you can often see raw tape or sealant wrapped around the threads. In contrast, straight threads have the same diameter from head to tail. This type of joint cannot seal the pressure itself and must rely on O-rings, washers or specific metal seat surfaces to maintain pressure. Confusing these two basic characteristics is the number one cause of thread bite and system leakage.

Accurately Measure The Outer Diameter/Inner Diameter With A Digital Caliper

Once you’ve defined the thread profile, you have to speak with the data. When measuring the male connector, use a caliper to measure the outer diameter of the widest part of the thread; if measuring the female connector, extend the caliper into the joint to measure the inner diameter. The measurement position must be precise and ensure that the reading reflects the true thread specifications. Even a deviation of a few millimeters can mean a thousand miles between metric threads and imperial standards.

Determine The Pitch And Standard

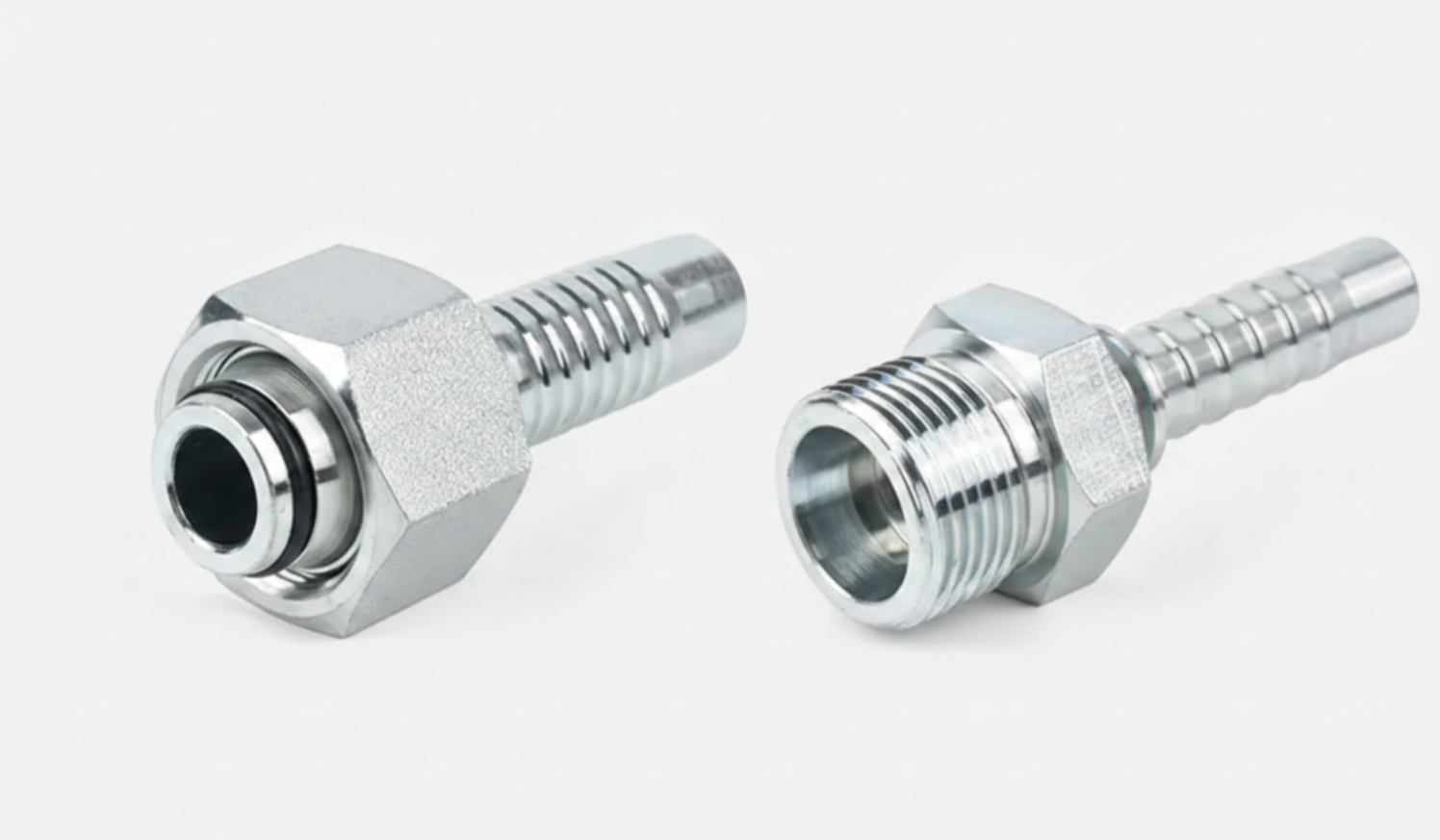

Metric Female 24° Cone Light Type And Metric Male 24°Cone Seat Fittings

After measuring the diameter, it’s time to get the thread gauge on the field. This thing consists of a bunch of blades with teeth. If it is a North American or British standard, we calculate it by teeth per inch; if it is the metric DIN standard commonly used in Europe, we look at the distance between tooth cusps. You have to completely lock the thread gauge and the joint teeth until you can’t see any light leakage in the middle. At this time, you can be sure that you have found the standard. This step is key to ensuring that the joint fits perfectly with the system.

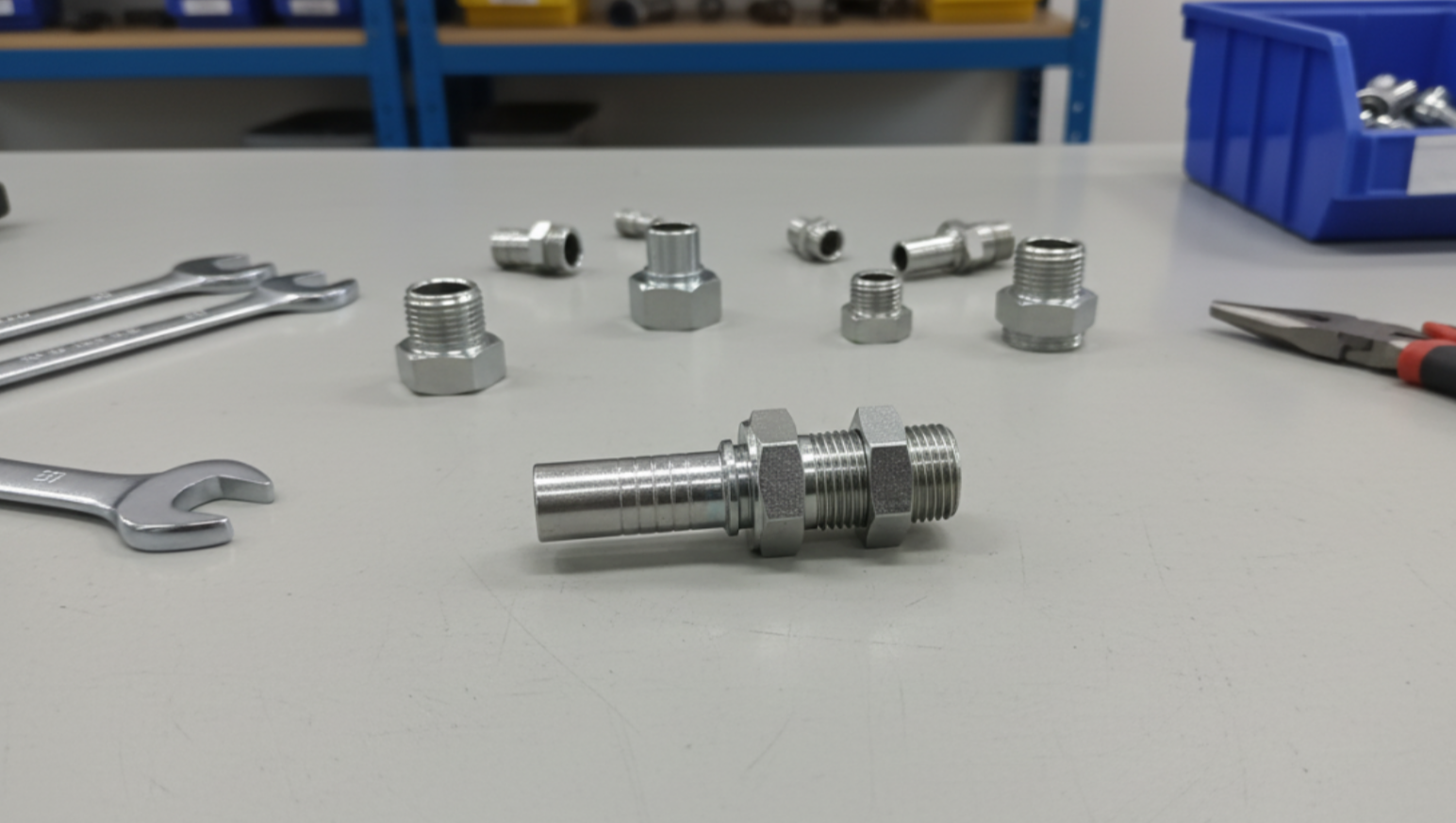

Identify The Sealing Angle To Ensure A Perfect Seal

The final technical step is the seat angle, which is the angle of the inclined surface where the metal seals against the metal. The most troublesome are 37° JIC and 45° SAE flare, which are almost identical to the naked eye. At this time, you must use a seat angle gauge or protractor and apply the gauge to the sealing surface. If the angle is not right, the joint must be not seated properly. Once the high pressure comes up, the tube will burst in minutes. Deciding whether to chamfer or flare is the final piece of the puzzle to determine component compatibility.

Dash Size Conversion

Once you have mastered the measurement method, the last step is to convert your findings into an industry-wide Dash Size. This system saves a lot of trouble in communication between engineers and suppliers. Dash numbers are calculated in units of 1/16 inch. For example, -04 corresponds to 4/16, and -16 corresponds to 16/16. If it is a metric joint, it is usually sufficient to directly report the thread diameter and pitch, such as M18 x 1.5.
