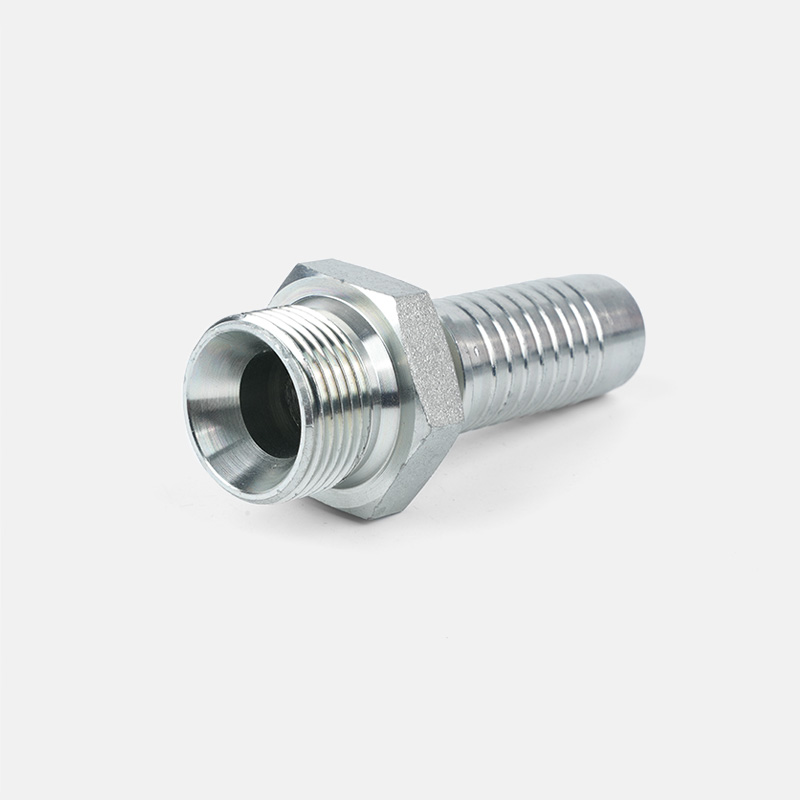

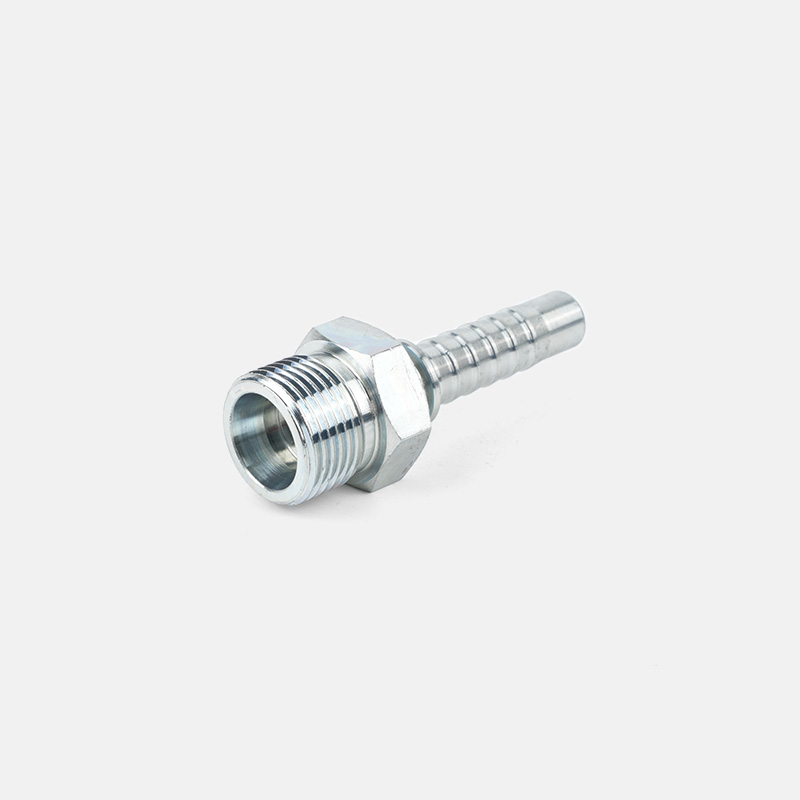

Zhejiang Tianxiang Machine Fittings Co.,Ltd. Home / Products / Hydraulic Hose Fittings / Metric Hydraulic Hose Fittings / Metric Male 24° Cone Seat Light Type
  • Specification
    PART NO. THREAD E HOSE BORE TUBE O.D. DIMENSIONS
    DN DASH A C S1
    10411-12-04 M12x1.5 6 04 6 20.5 10 12
    10411-14-04 M14x1.5 6 04 8 20.5 10 14
    10411-14-05 M14x1.5 8 05 8 21.5 10 14
    10411-16-04 M16x1.5 6 04 10 22.5 11 17
    10411-16-05 M16x1.5 8 05 10 22.5 11 17
    10411-16-06 M16x1.6 10 06 10 22.5 11 17
    10411-18-05 M18x1.5 8 05 12 23.5 11 19
    10411-18-06 M18X1.5 10 06 12 21.5 11 19
    10411-22-06 M22x1.5 10 06 15 24.5 12 24
    10411-22-08 M22x1.5 12 08 15 26 12 24
    10411-26-08 M26x1.5 12 08 18 26.5 12 27
    10411-26-10 M26x1.5 16 10 18 27 12 27
    10411-27-10 M27x1.5 16 10 18 32 14 30
    10411-30-10 M30x2 16 10 22 29 14 32
    10411-36-16 M36x2 25 16 28 31.5 14 38
    10411-45-20 M45x2 32 20 35 36 16 46
    10411-52-24 M52x2 40 24 42 38 16 55

    PART NO. THREAD E HOSE BORE TUBE O.D. DIMENSIONS
    DN DASH A C S1
    10511-14-04 M14x1.5 6 04 6 24.1 12 14
    10511-16-04 M16x1.5 6 04 8 26.5 12 17
    10511-18-04 M18x1.5 6 04 10 26.5 12 19
    10511-20-05 M20x1.5 8 05 12 27 12 22
    10511-20-06 M20x1.5 10 06 12 26.5 12 22
    10511-22-05 M22x1.5 8 05 14 30.5 14 24
    10511-22-06 M22x1.5 10 06 14 30.5 14 24
    10511-22-08 M22x1.5 12 08 14 31 14 24
    10511-24-08 M24x1.5 12 08 16 31.5 14 27
    10511-30-10 M30x2 16 10 20 36 16 32
    10511-30-12 M30x2 20 12 20 36 16 32
    10511-36-12 M36x2 20 12 25 40.5 18 41
    10511-36-16 M36x2 25 16 25 41.5 18 38
    10511-42-16 M42x2 25 16 30 44 20 46
    10511-42-20 M42x2 32 20 30 45 20 46
    10511-52-20 M52x2 32 20 38 50 22 55
