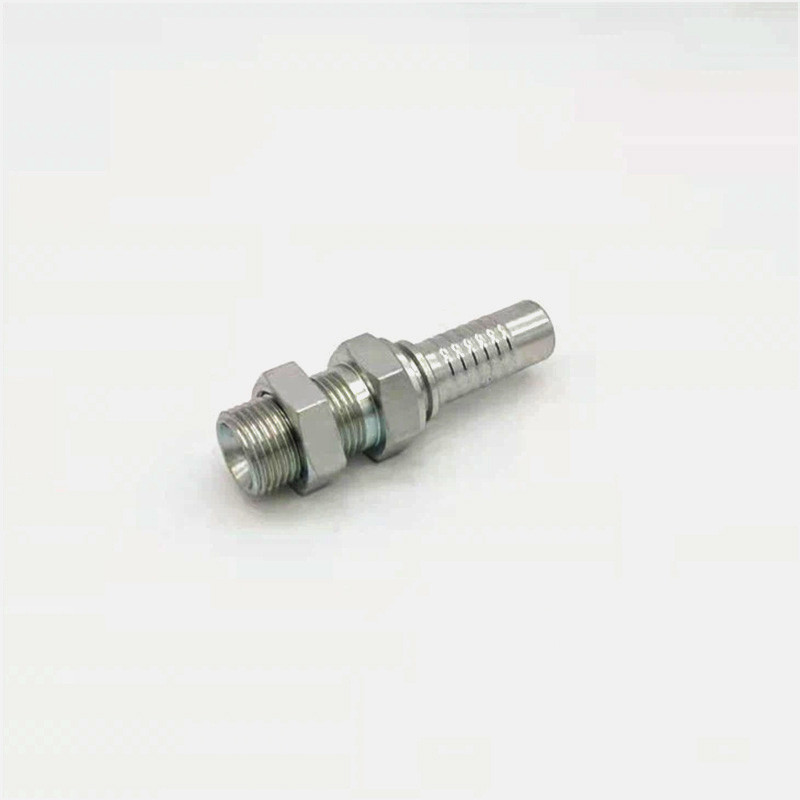

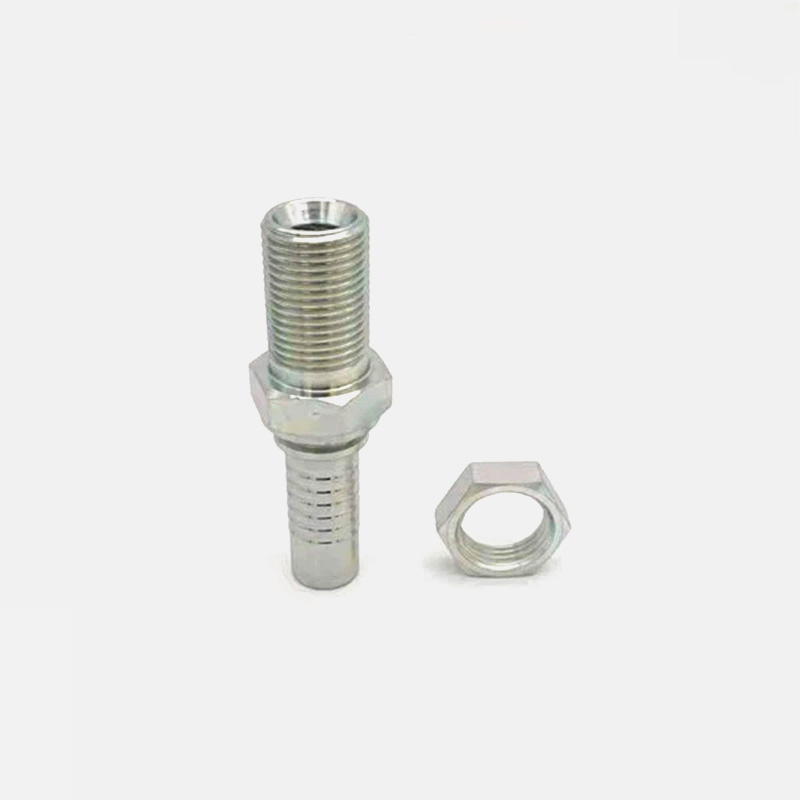

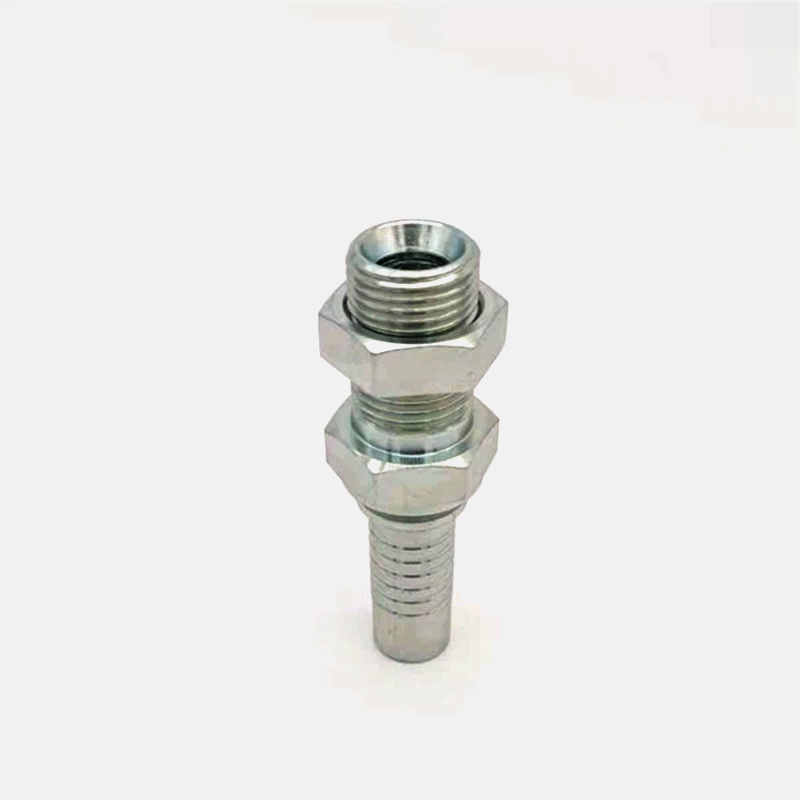

Metric Male - Cone 60° Bulkhead

Metric Male - Cone 60° Bulkhead

Manufacturer: ZHEJIANG TIANXIANG
Thread: Metric,1.5mm Pitch or BSPP  complete with Locknut
Material: Carbon Steel Stainless Steel
Salt Spray Test:72 hours, trivalent chromium
Code:10611LN
  • Metric Male - Cone 60° Bulkhead
  • Metric Male - Cone 60° Bulkhead
  • Metric Male - Cone 60° Bulkhead
  • Metric Male - Cone 60° Bulkhead
Contact Us
  • Specification
    PART
     NO.    		 THREAD E HOSE BORE TUBE
    O.D.    		 O RING DIMENSIONS
    DN DASH A C S2
    20411-12-04 M12X1.5 6 04 6 O04.5X1.5 26 1 17
    20411-14-04 M14X1.5 6 04 8 O06.5X1.5 27.5 2 19
    20411-14-06 M14X1.5 10 06 8 O06.5X1.5 27.5 2 19
    20411-16-04 M16X1.5 6 04 10 O08.0X1.5 28 2 22
    20411-16-05 M16X1.5 8 05 10 O08.0X1.5 28 2 22
    20411-18-05 M18X1.5 8 05 12 O010.0X1.5 27.5 1.8 22
    20411-18-06 M18X1.5 10 06 12 O010.0X1.5 29 2.4 24
    20411-18-08 M18X1.5 12 08 12 O010.0X1.5 29.5 2.5 24
    20411-22-05 M22X1.5 8 05 15 O012.0X2.0 29.5 2.1 27
    20411-22-06 M22X1.5 10 06 15 O012.0X2.0 29.0 2.5 27
    20411-22-08 M22X1.5 12 08 15 O012.0X2.0 32 2.5 27
    20411-26-10 M26X1.5 16 10 18 O015.0X2.0 35 2.5 32
    20411-26-12 M26X1.5 20 12 18 O015.0X2.0 35 2.5 32
    20411-27-10 M27X1.5 16 10 18 O015.0X2.0 28 2.5 32
    20411-27-12 M27X1.5 20 12 18 O015.0X2.0 35 2.5 32
    20411-30-10 M30X2 16 10 22 O020.0X2.0 35 4 36
    20411-30-12 M30X2 20 12 22 O020.0X2.0 38 4 36
    20411-36-12 M36X2 20 12 28 O026.0X2.0 35 4 41
    20411-36-14 M36X2 20 12 28 O026.0X2.0 35 4 41
    20411-45-16 M45X2 25 16 35 O032.0X2.5 41 5 55
    20411-45-20 M45X2 32 20 35 O032.0X2.5 42 5 55
    20411-52-20 M52X2 32 20 42 O038.0X2.5 44 5.5 60
    20411-52-24 M52X2 40 24 42 O038.0X2.5 44 5.5 60
