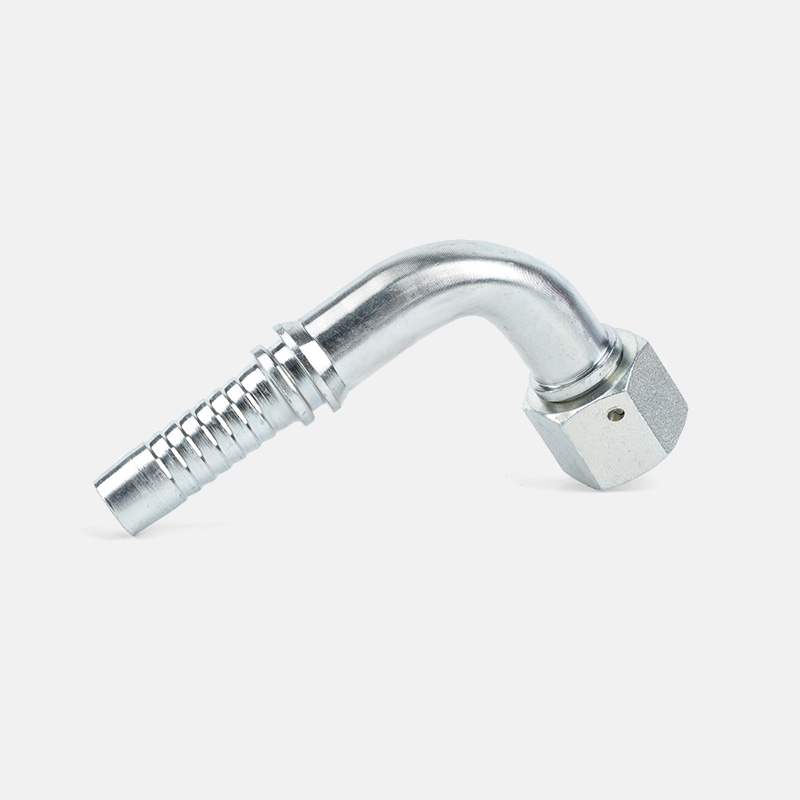

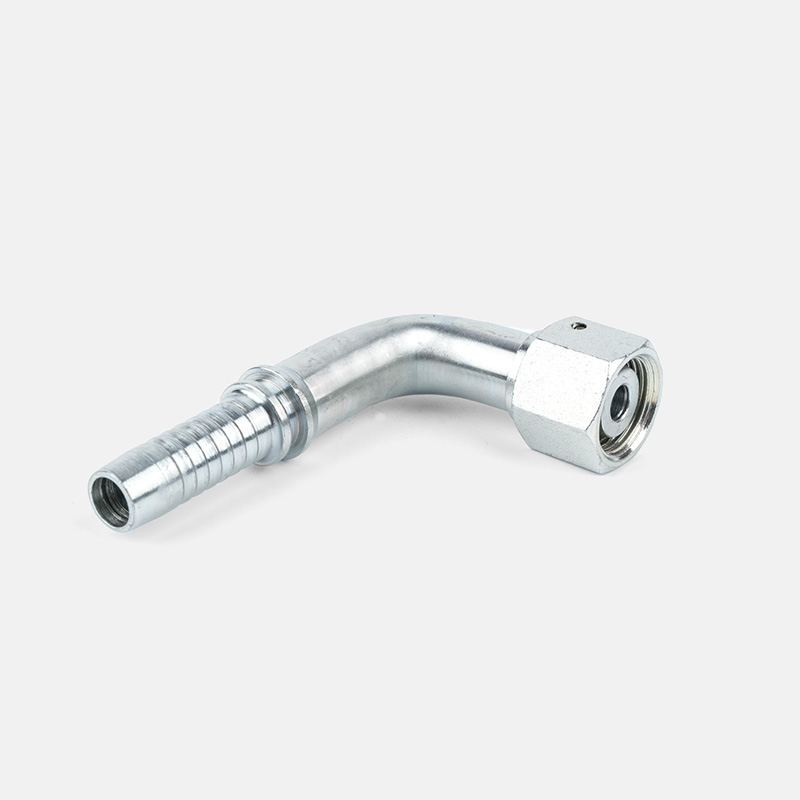

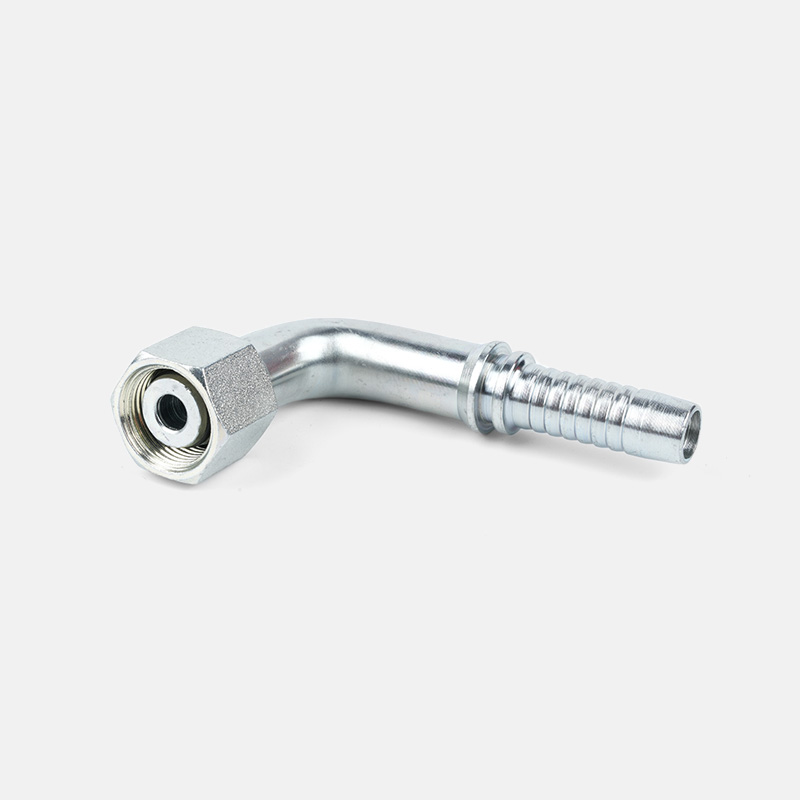

24 Cone O-ring Seal Metric Thread Fitting Elbow

24 Cone O-ring Seal Metric Thread Fitting Elbow

Description
This 24-cone O-ring Seal Metric Thread Fitting Elbow refers to the threaded pipe connector, which is the many common pipe fitting in industry and life. The threaded connector makes the connection of pipes easier, and it is easier to disassemble and replace, thus greatly saving the cost of pipe connection. The joint has high strength and good rigidity and can play a very good connection effect. The connector is easy to connect, fast, and easy to operate, so the installation time is greatly saved.

Features
*You can easily detect 24 Cone O-ring Seal Metric Thread Fitting Elbow to achieve a better use effect.
*No electricity, gas, or open flame is required for connection, so the installation is very convenient and safe.
*The product will not pollute the liquid in the pipe and is harmless to the environment.
*It is widely used in industries such as the chemical industry, hydraulic petroleum gas, and vehicle and ship manufacturing.

  • 24 Cone O-ring Seal Metric Thread Fitting Elbow
  • 24 Cone O-ring Seal Metric Thread Fitting Elbow
  • 24 Cone O-ring Seal Metric Thread Fitting Elbow
  • 24 Cone O-ring Seal Metric Thread Fitting Elbow
  • 24 Cone O-ring Seal Metric Thread Fitting Elbow
  • 24 Cone O-ring Seal Metric Thread Fitting Elbow
Contact Us
  • Specification
    ATTRIBUTES DESCRIPTION
    PRODUCT NAME Metric Female 24° CONE O-RING  DIN 3865
    PLACE OF ORIGIN CHINA
    BRAND NAME TIANXIANG
    ITEM NUMBER FOR BRAIDED HOSE 20411   20441  20491
    ITEM NUMBER FOR SPIRAL HOSE 20511   20541  20591
    MATERIAL CARBON STEEL 20#, OR STAINLESS STEEL
    STANDARD WINNER OR EATON
    SURFACE TREATMENT CR+3 ZINC or Zn-Ni
    COLOR YELLOW or WHITE
    THREAD METRIC
    SIZE AS PER THE BELOW SHEET
    PACKAGING DETAILS 60 CARTONS WRAPPED ON A WOODEN PALLET BY NYLON BELTS OR WRAPPED IN A BIG WOODEN CRATE
    CERTIFICATES ISO9001/2008
    FABRICATION TECH FORGED and CNC LATHING
    OEM SERVICE FABRICATED ACCORDING TO YOUR DRAWINGS OR SAMPLES
    LOADING PORT NINGBO/SHANGHAI
    MOQ 500/ITEM FOR SIZE ITEM, 2000 PCS/ITEM FOR SIZE ITEM
    LEADTIME USUALLY 25 DAYS AROUND AFTER ORDER CONFIRMATION. BUT IT DEPENDS ON ORDER VOLUME
    SUPPLY ABILITY 50000 SETS/ MONTH
    PART
     NO.    		 THREAD E HOSE BORE TUBE
    O.D.    		 O RING DIMENSIONS
    DN DASH A C S2
    20411-12-04 M12X1.5 6 04 6 O04.5X1.5 26 1 17
    20411-14-04 M14X1.5 6 04 8 O06.5X1.5 27.5 2 19
    20411-14-06 M14X1.5 10 06 8 O06.5X1.5 27.5 2 19
    20411-16-04 M16X1.5 6 04 10 O08.0X1.5 28 2 22
    20411-16-05 M16X1.5 8 05 10 O08.0X1.5 28 2 22
    20411-18-05 M18X1.5 8 05 12 O010.0X1.5 27.5 1.8 22
    20411-18-06 M18X1.5 10 06 12 O010.0X1.5 29 2.4 24
    20411-18-08 M18X1.5 12 08 12 O010.0X1.5 29.5 2.5 24
    20411-22-05 M22X1.5 8 05 15 O012.0X2.0 29.5 2.1 27
    20411-22-06 M22X1.5 10 06 15 O012.0X2.0 29.0 2.5 27
    20411-22-08 M22X1.5 12 08 15 O012.0X2.0 32 2.5 27
    20411-26-10 M26X1.5 16 10 18 O015.0X2.0 35 2.5 32
    20411-26-12 M26X1.5 20 12 18 O015.0X2.0 35 2.5 32
    20411-27-10 M27X1.5 16 10 18 O015.0X2.0 28 2.5 32
    20411-27-12 M27X1.5 20 12 18 O015.0X2.0 35 2.5 32
    20411-30-10 M30X2 16 10 22 O020.0X2.0 35 4 36
    20411-30-12 M30X2 20 12 22 O020.0X2.0 38 4 36
    20411-36-12 M36X2 20 12 28 O026.0X2.0 35 4 41
    20411-36-14 M36X2 20 12 28 O026.0X2.0 35 4 41
    20411-45-16 M45X2 25 16 35 O032.0X2.5 41 5 55
    20411-45-20 M45X2 32 20 35 O032.0X2.5 42 5 55
    20411-52-20 M52X2 32 20 42 O038.0X2.5 44 5.5 60
    20411-52-24 M52X2 40 24 42 O038.0X2.5 44 5.5 60
