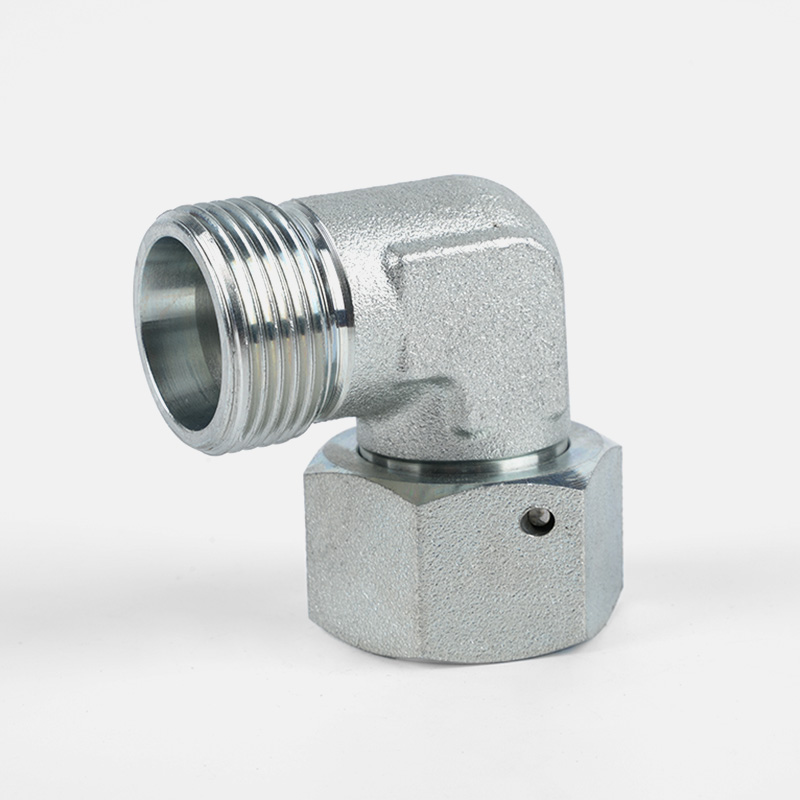

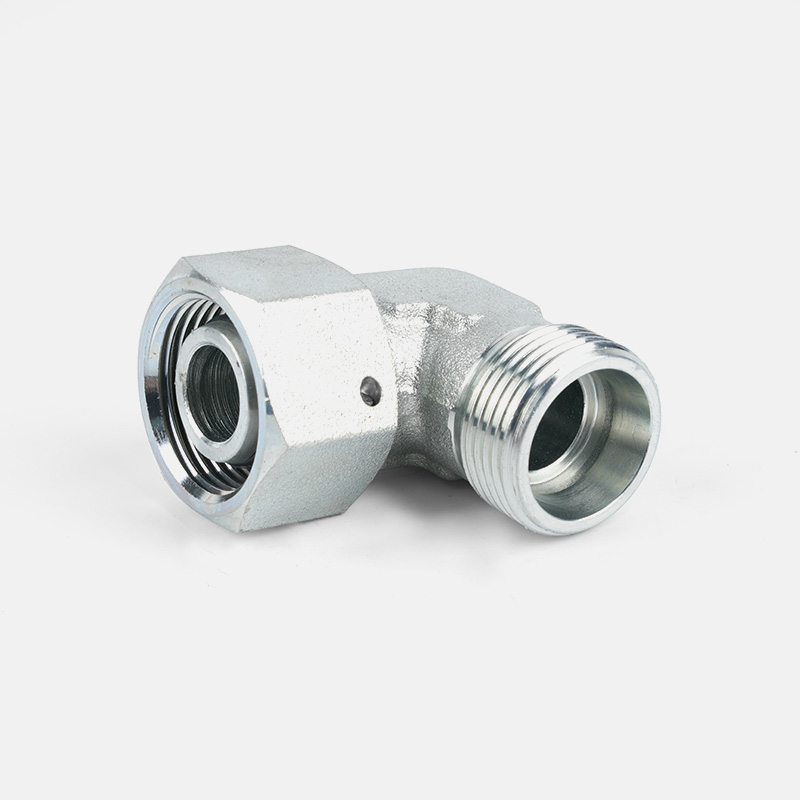

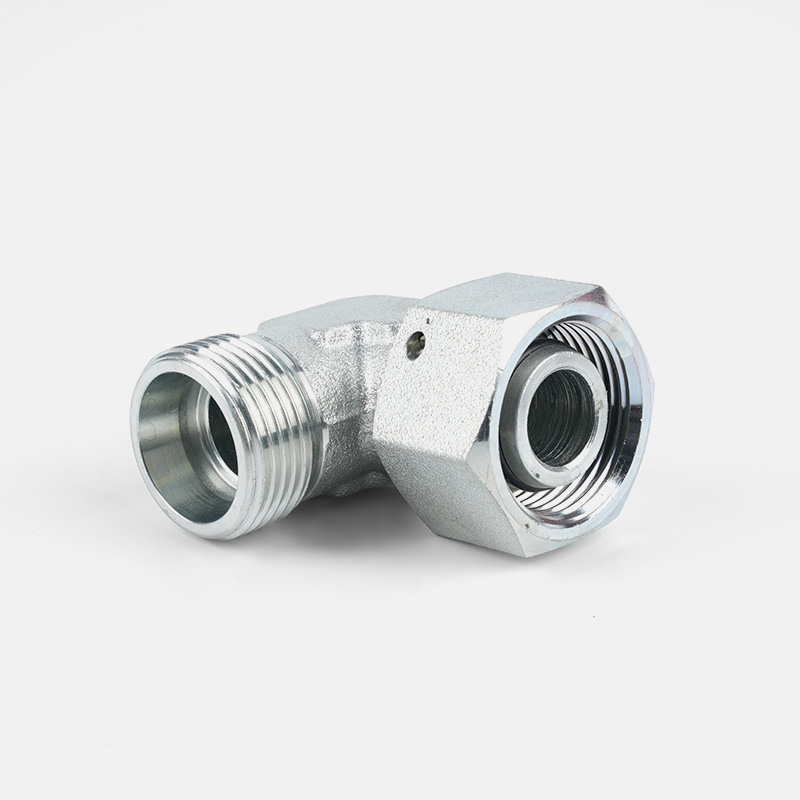

90°Elbow Reducer Tube Adapter With Swivel Nut

90°Elbow Reducer Tube Adapter With Swivel Nut

  • 90°Elbow Reducer Tube Adapter With Swivel Nut
  • 90°Elbow Reducer Tube Adapter With Swivel Nut
  • 90°Elbow Reducer Tube Adapter With Swivel Nut
Contact Us
  • Specification

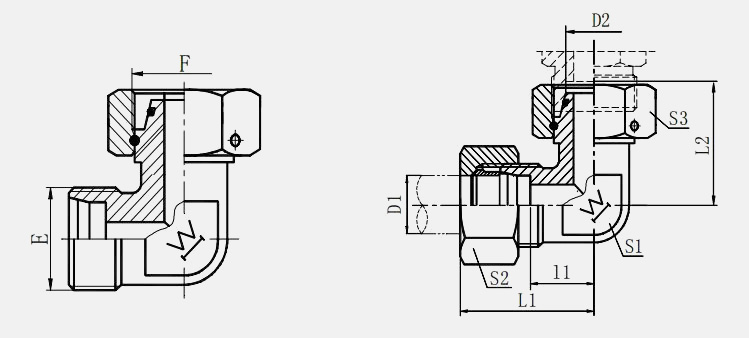

    Part NO. E F D1 D2 L1 L2 S1 S2 S3
    2C9-12 M12X1.5 M12X1.5 6 6 27 26 12 14 14
    2C9-14 M14X1.5 M14X1.5 8 8 29 27.5 12 17 17
    2C9-16 M16X1.5 M16X1.5 10 10 30 29 14 19 19
    2C9-18 M18X1.5 M18X1.5 12 12 32 29.5 17 22 22
    2C9-22 M22X1.5 M22X1.5 15 15 36 32.5 19 27 27
    2C9-26 M26X1.5 M26X1.5 18 18 40 35.5 24 32 32
    2C9-30 M30X2 M30X2 22 22 44 38.5 27 36 36
    2C9-36 M36X2 M36X2 28 28 47 41.5 36 41 41
    2C9-45 M45X2 M45X2 35 35 56 51 41 50 50

    2C9-52 M52X2 M52X2 42 42 63 56 50 60 60
    2D9-14 M14X1.5 M14X1.5 6 6 31 27 12 17 17
    2D9-16 M16X1.5 M16X1.5 8 8 32 27.5 14 19 19
    2D9-18 M18X1.5 M18X1.5 10 10 34 30 17 22

    22
    2D9-20 M20X1.5 M20X1.5 12 12 38 31 17 24 24
