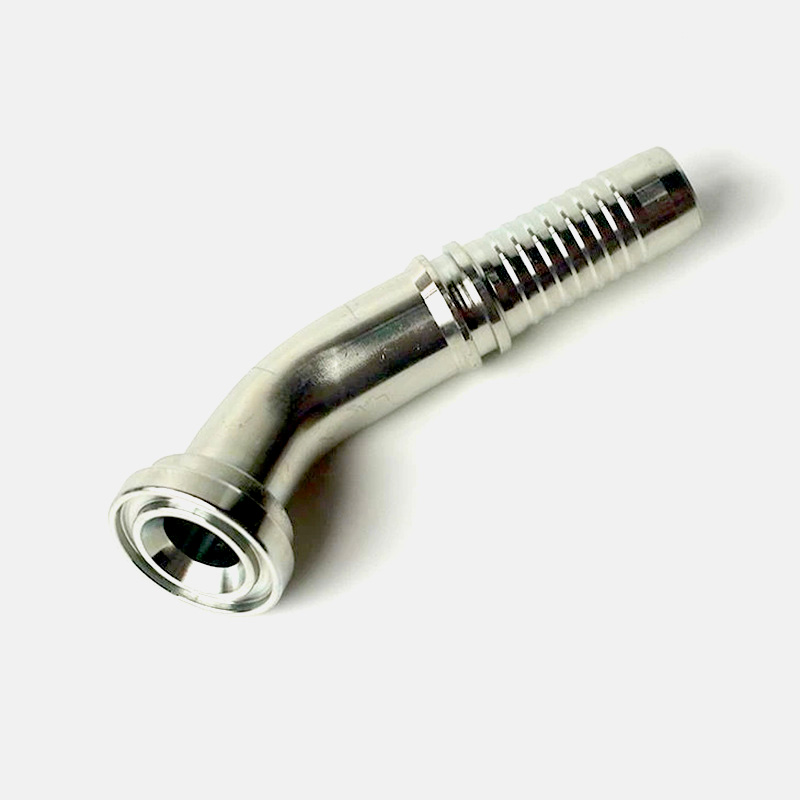

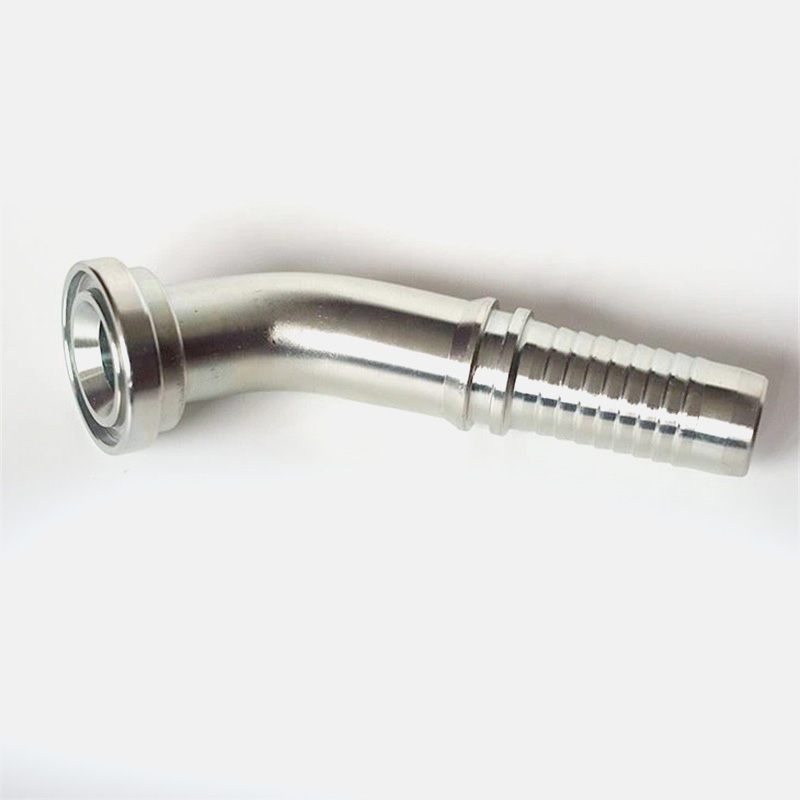

45 Elbow Sae Flange 3000psi

45 Elbow Sae Flange 3000psi

Description
This 45 Elbow Sae Flange 3000psi is a hydraulic hose end fitting, which is used to connect various hydraulic components. The product is made of carbon steel 45 or stainless steel. Both materials have good wear resistance, so the surface of the product can remain clean and bright even after long use. Good resistance to low temperatures and high temperatures makes the product well-adapted to various temperatures. The product has good deformation resistance, will not expand due to heat, and will not shrink due to cold.

Features
*45 Elbow Sae Flange 3000psi will not expand due to heat, that is, its deformation resistance is very good.
*The product has a reliable connection, high-pressure resistance, and good sealing performance.
*Stainless steel and carbon steel give the product hardness and rigidity so that it will not be easily broken.
*The product structure is reasonable and compact, so it is very convenient for installation, maintenance, and inspection.

  • 45 Elbow Sae Flange 3000psi
  • 45 Elbow Sae Flange 3000psi
Contact Us
  • Specification
    ATTRIBUTES DESCRIPTION
    PRODUCT NAME HYDRAULIC HOSE END FITTINGS, SAE FLANGE, 45 ELBOW
    PLACE OF ORIGIN CHINA
    BRAND NAME TIANXIANG
    ITEM NUMBER 87342(FOR 4 LAYERS SPIRAL HOSE)/87343(FOR 6 LAYERS SPIRAL HOSE)
    MATERIAL CARBON STEEL 45#, OR STAINLESS STEEL
    STANDARD ISO12151-3/ SAE J516
    SURFACE TREATMENT CR+3 ZINC or Zn-Ni
    COLOR YELLOW or WHITE
    COMPRESSION STRENGTH 3000psi

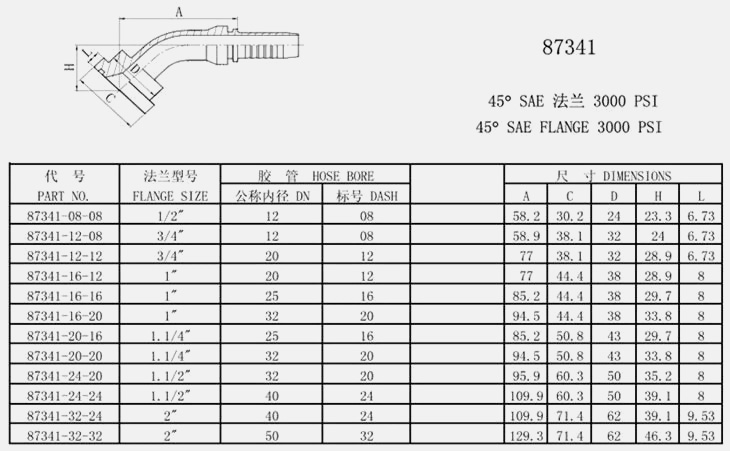

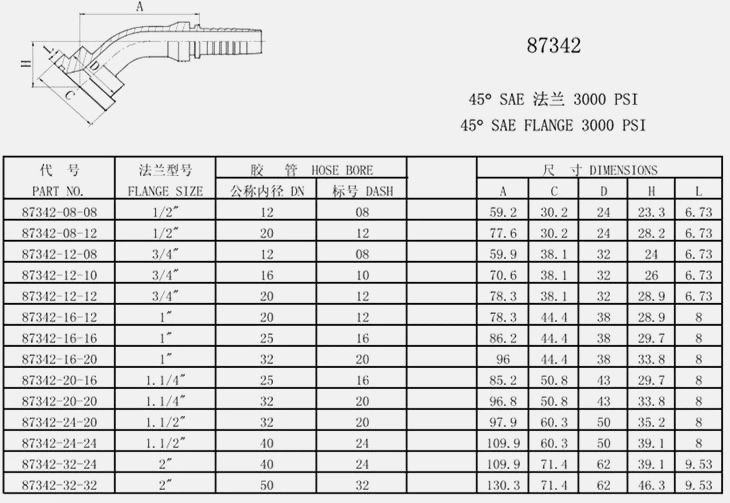

    SIZE AS PER BELOW SHEET
    PACKAGING DETAILS 60 CARTONS WRAPPED ON A WOODEN PALLET BY NYLON BELTS OR WRAPPED BY A BIG WOODEN CRATE
    CERTIFICATES ISO9001/2008
    FABRICATION TECH FORGED and CNC LATHING
    OEM SERVICE FBRICATED ACCORDING TO YOUR DRAWINGS OR SAMPLES
    LOADING PORT NINGBO/SHANGHAI
    MOQ 500pcs/ITEM FOR BIG SIZE ITEM, 2000 PCS/ITEM FOR SMALL SIZE ITEM
    LEADTIME USUALLY 25 DAYS AROUND AFTER ORDER CONFIRMATION. BUT IT DEPENDS ON ORDER VOLUME
    SUPPLY ABILITY 50000 SETS/ MONTH
