O-Ring Kit

Name: O-RING KIT
Rating: 5 (99 reviews)

This complete O-Ring kit is a welcome .
This kit includes o-rings for SAE/O-Ring Boss, Code 61/62 Flanges and BSP male O-RING .

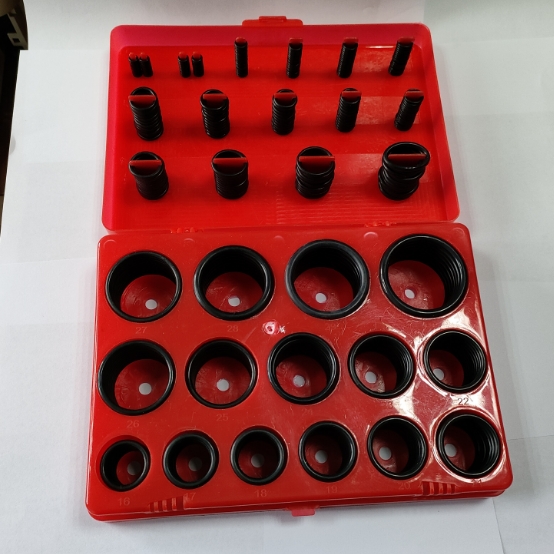

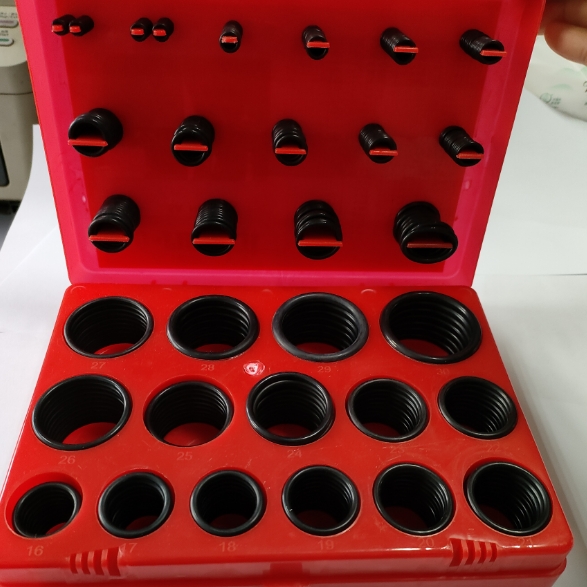

There are total 382 pcs . you're sure to have what you need when you need it,
and the convenient plastic case keeps it all organized in one place.

All seals contained in this kit are NBR70B,We also can pack NBR90 , FKM and so on . It depends on your requirements.

Kit Includes:

FOR SAE FLANGE O RING

PART NO.	FLANGE SIZE	d.	W.
O210	1/2"	18.64	3.53
O214	3/4"	24.99	3.53
O219	1"	32.92	3.53
O222	1.1/4"	37.69	3.53
O225	1.1/2"	47.22	3.53
O228	2"	56.74	3.53
O232	2.1/4"	69.44	3.53

FOR SAE FLANGE O RING

PART NO.	FLANGE SIZE	d.	W.
O212	5/8"	21.82	3.53

FOR ORFS MALE O RING

PART NO.	THREAD	d.	W.
O011	9/16"x18	7.65	1.78
O012	11/16"x16	9.25	1.78
O014	13/16"x16	12.2	1.78
O016	1"x14	15.6	1.78
O018	1.3/16"x12	18.77	1.78
O021	1.7/16"x12	23.52	1.78
O025	1.11/16"x12	29.87	1.78
O029	2"x12	37.82	1.78

FOR BSP MALE O RING

PART NO.	THREAD	d.	W.
O111	G1/4"X19	10.77	2.62
O113	G3/8"X19	13.94	2.62
O115	G1/2"X14	17.12	2.62
O910	G5/8"X14	19.18	2.46
O119	G3/4"X14	23.47	2.62
O217	G1"X11	29.74	3.53
O222	G1.1/4"X11	37.69	3.53
O224	G1.1/2"X11	44.04	3.53
O139	G2"X11	54	3
