Zhejiang Tianxiang Machine Fittings Co.,Ltd. Home / Products / Hydraulic Adapters / 24° Tube Connectors / 90° Elbow Metric Thread Adjustable Stud Ends 1CH9-OG / 1DH9-OG

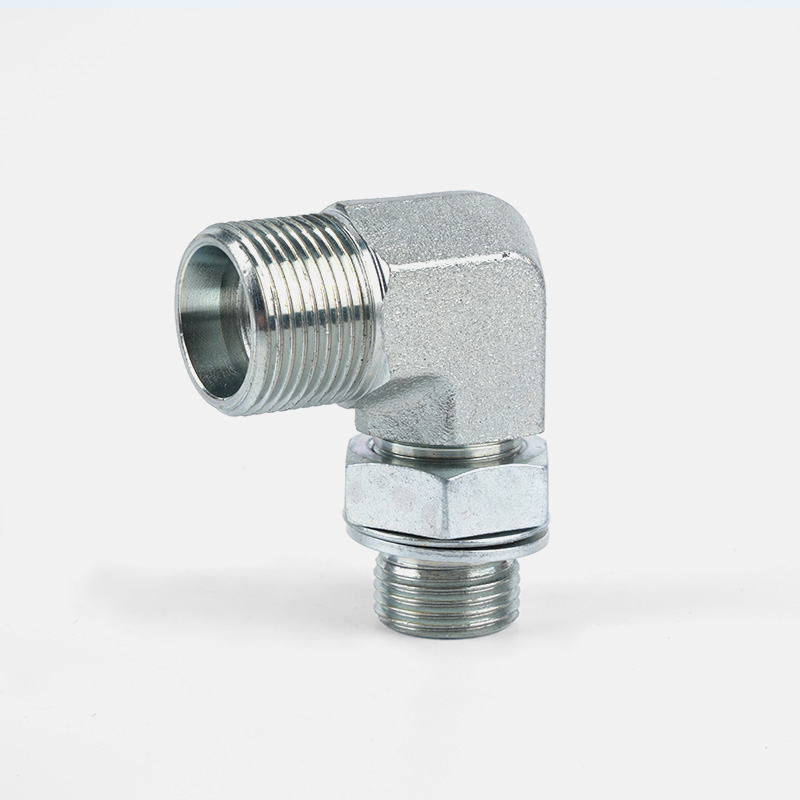

90° Elbow Metric Thread Adjustable Stud Ends 1CH9-OG / 1DH9-OG

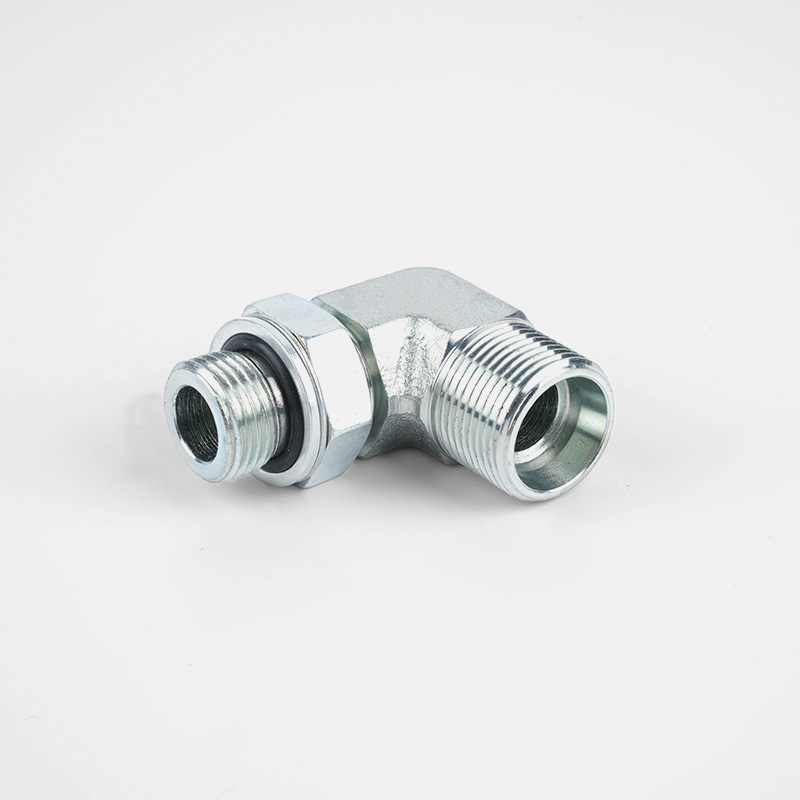

90° Elbow Metric Thread Adjustable Stud Ends 1CH9-OG / 1DH9-OG

Material: Stainless Steel carbon steel
Technique: Forged
Type: Tube adapter
Place of Origin: ZHUJI, China (Mainland)
Brand Name: TIANXIANG
Connection: Thread
Shape: Equal
Head Code: Hexagon
OD Size: 1/16''-1'', 3mm-25mm
Structure: Straight
Working Pressure: up to 6000psi
Medium: water, oil, gas, acid, base and so on
Special Treatment: ferrule hardness treatment
Nut Treatment: silver planted
Tube Treatment: fully annealed
Inner Cone: mirror polishing processing
Working Temperature: -20 to 200 Celsius degree
  • 90° Elbow Metric Thread Adjustable Stud Ends 1CH9-OG / 1DH9-OG
  • 90° Elbow Metric Thread Adjustable Stud Ends 1CH9-OG / 1DH9-OG
  • 90° Elbow Metric Thread Adjustable Stud Ends 1CH9-OG / 1DH9-OG
Contact Us

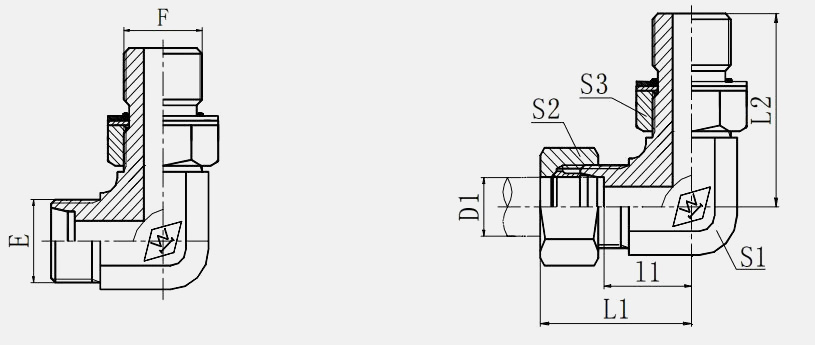

  • Specification

    PART NO. THREAD TUBE O.D. O RING DIMENSIONS
    E F D1 I1 L1 L2 S1 S2 S3
    1CH9-12-10OG M12x1.5 M10x1 6 O08.1x1.6 13 28 26.5 11 14 14
    1CH9-14-12OG M14x1.5 M12x1.5 8 O09.3x2.4 15.5 30.5 32 14 17 17
    1CH9-16-14OG M16x1.5 M14x1.5 10 O011.3x2.4 17.5 32.5 34 16 19 19
    1CH9-18-16OG M18x1.5 M16x1.5 12 O013.3x2.4 19 34 36 19 22 22
    1CH9-22-18OG M22x1.5 M18x1.5 15 O015.3x2.4 22 37 39.5 22 27 24
    1CH9-26-22OG M26x1.5 M22x1.5 18 O019.3x2.4 25.5 42 43.5 27 32 27
    1CH9-30-27OG M30x2 M27x2 22 O023.5x3.0 29.3 45.8 50 30 36 32
    1CH9-36-33OG M36x2 M33x2 28 O029.5x3.0 33.3 49.8 54 36 41 41
    1DH9-14-12OG M14x1.5 M12x1.5 6 O09.3x2.4 17.5 32.5 32 14 17 17
    1DH9-16-14OG M16x1.5 M14x1.5 8 O011.3x2.4 18.7 33.7 34 16 19 19
    1DH9-18-16OG M18x1.5 M16x1.5 10 O013.3x2.4 19.5 36 36 19 22 22
    1DH9-20-18OG M20x1.5 M18x1.5 12 O015.3x2.4 19.5 36 37 19 24 24
    1DH9-22-20OG M22x1.5 M20x1.5 14 O017.3x2.4 23 41 40 22 27 27
    1DH9-24-22OG M24x1.5 M22x1.5 16 O019.3x2.4 24 42 37.5 24 30 27
    1DH9-30-27OG M30x2 M27x2 20 O023.5x3.0 28.3 49.8 50 30 36 32
    1DH9-36-33OG M36x2 M33x2 25 O029.5x3.0 32.8 56.8 54 36 46 41
    1DH9-42OG M42x2 M42x2 30 O038.5x3.0 36.2 62.7 57.2 41 50 50
