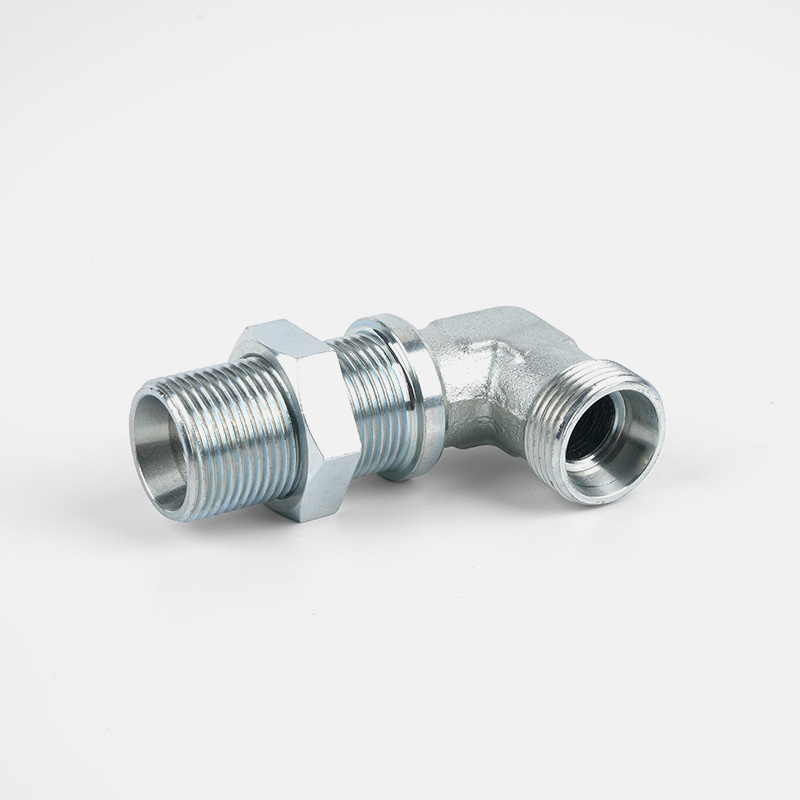

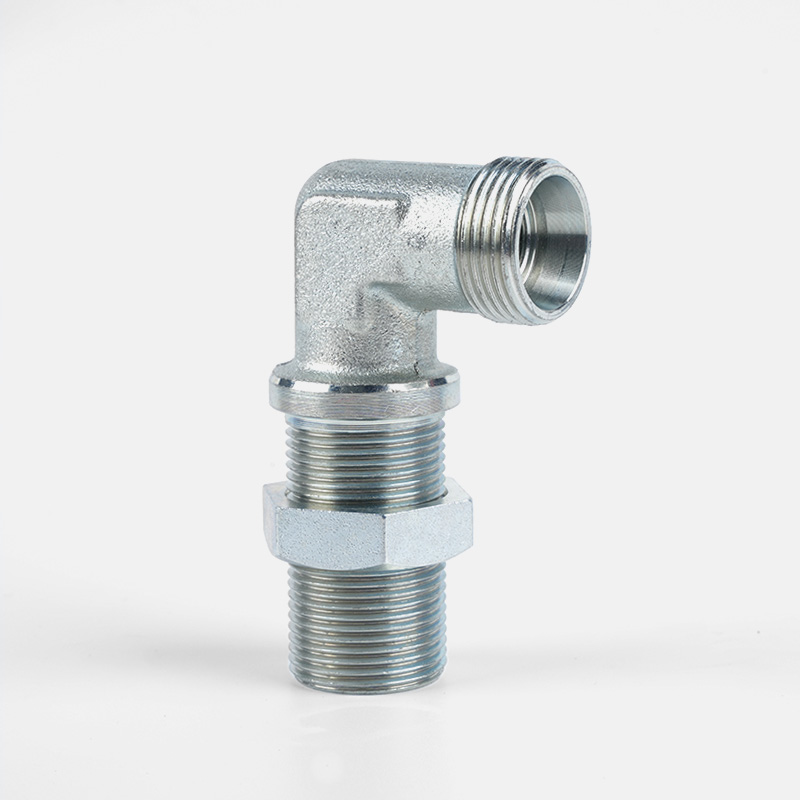

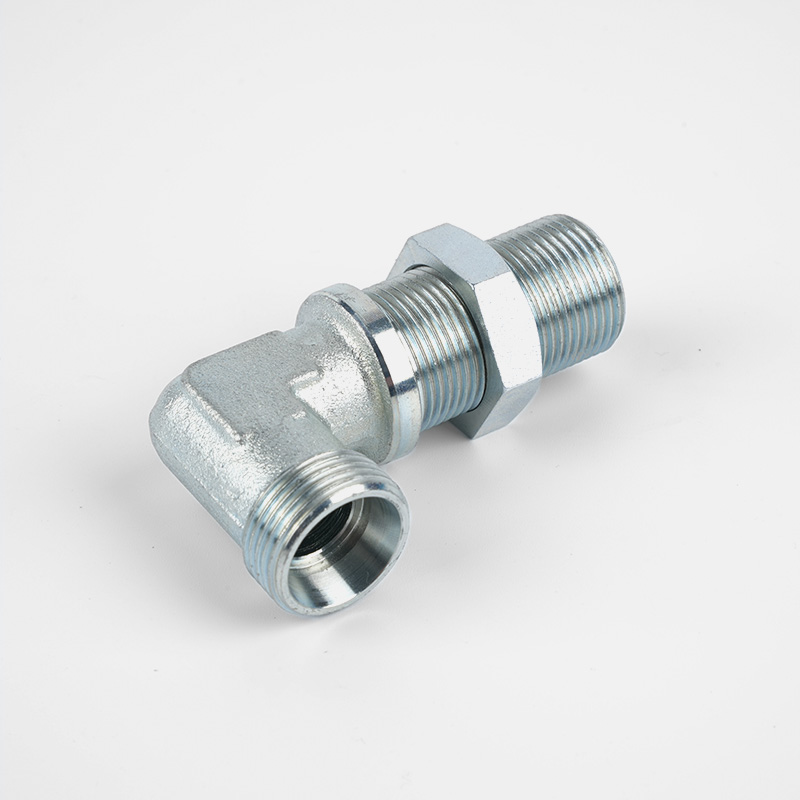

90°Elbow Bulkhead Fittings 6C9-LN/6D9-LN

90°Elbow Bulkhead Fittings 6C9-LN/6D9-LN

6C9-LN/6D9-LN, Elbow bulkhead fittings from the FI-WS series allow the straight connection of two metric tubes with identical diameters through a bulkhead wall at an angle of 90°, secured with a hexagon lock nut. They are available in the Extra-Light, Light, and Heavy Series series as per ISO 8434-1 / DIN 2353 and are suitable for rated pressures up to 800 bar. Designed for a bulkhead wall thickness of 16 mm. Tube connectors and cutting ring fittings from the STAUFF Connect series are made of steel with a 24° internal taper.

  • 90°Elbow Bulkhead Fittings 6C9-LN/6D9-LN
  • 90°Elbow Bulkhead Fittings 6C9-LN/6D9-LN
  • 90°Elbow Bulkhead Fittings 6C9-LN/6D9-LN
Contact Us

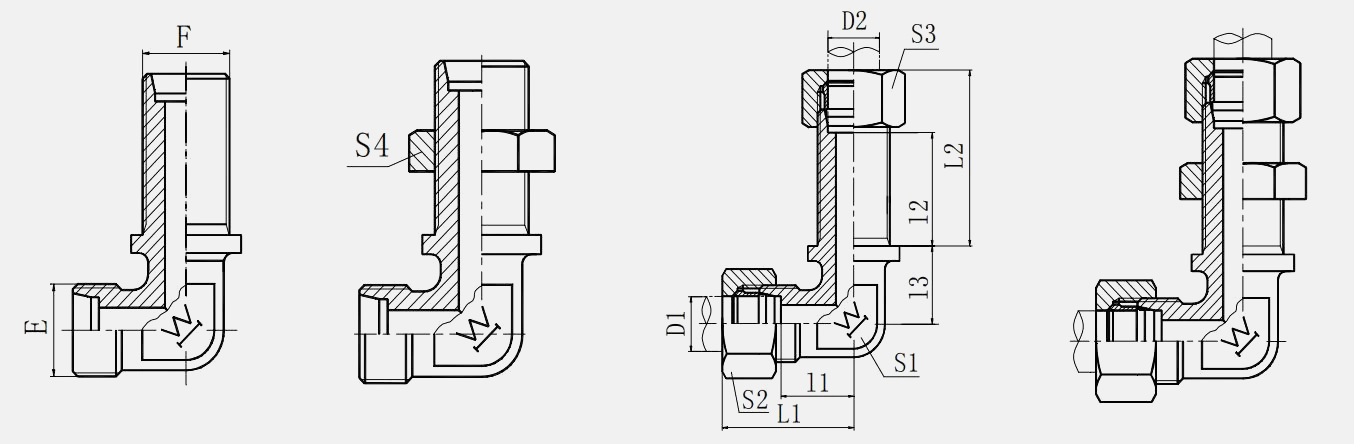

  • Specification

    PART

    NO.

    		 THREAD TUBE O.D. DIMENSIONS
    E  F D1  D2 l1 l2 l3 L1 L2 S1 S2.S3 S4
    6C9-12 M12x1.5 6 27 12 14 42 27 12 14 17
    6C9-14 M14x1.5 8 27 14 17 42 29 12 17 19
    6C9-16 M16x1.5 10 28 15 18 43 30 14 19 22
    6C9-18 M18x1.5 12 29 17 20 44 32 17 22 24
    6C9-22 M22x1.5 15 31 21 23 46 36 19 27 30
    6C9-26 M26x1.5 18 32.5 23.5 24 49 40 24 32 36
    6C9-30 M30x2 22 34.5 27.5 30 51 44 27 36 41
    6C9-36 M36x2 28 35.5 30.5 34 52 47 36 41 46
    6C9-45 M45x2 35 36.5 34.5 39 58 56 41 50 55
    6C9-52 M52x2 42 36 40 43 59 63 50 60 65
    6D9-14 M14x1.5 6 29 16 17 44 31 12 17 19
    6D9-16 M16x1.5 8 29 17 18 44 32 14 19 22
    6D9-18 M18x1.5 10 29.5 17.5 20 46 34 17 22 24
    6D9-20 M20x1.5 12 30.5 21.5 21 47 38 17 24 27
    6D9-22 M22x1.5 14 32 22 23 50 40 19 27 30
    6D9-24 M24x1.5 16 31.5 24.5 24 50 43 24 30 32
    6D9-30 M30x2 20 33.5 26.5 30 55 48 27 36 41
    6D9-36 M36x2 25 35 30 34 59 54 36 46 46
    6D9-42 M42x2 30 37.5 35.5 39 64 62 41 50 50
    6D9-52 M52x2 38 37 41 43 68 72 50 60 65
