Npt Male Hose Fittings

Npt Male Hose Fittings

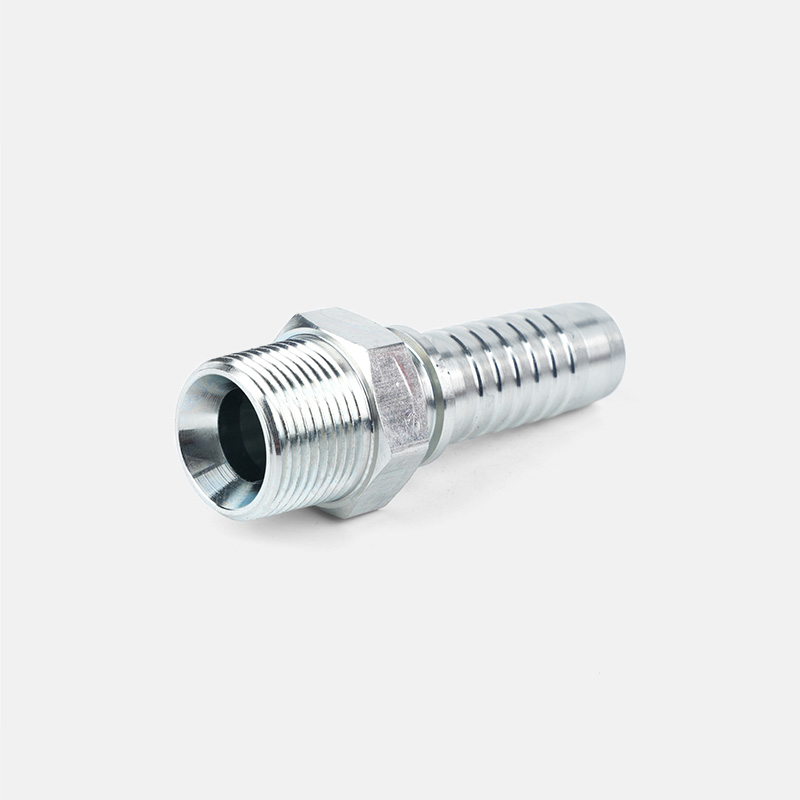

15611 hydraulic NPT fitting is a straight hose fitting with a male NPT thread and a hose barb end.
The male thread can connect the female NPT thread, and the hose barb end can provide a secure connection with a hydraulic hose.
If you have any questions about NPT fittings, feel free to ask.
Features and Benefits:
• Leak-free
• Reliable
• Free samples
• Customize
  • Npt Male Hose Fittings
Contact Us
  • Specification
    ATTRIBUTES DESCRIPTION
    PRODUCT NAME HYDRAULIC HOSE END FITTINGS, NPT WITH BELL MOUTH, MALE
    PLACE OF ORIGIN CHINA
    BRAND NAME TIANXIANG
    ITEM NUMBER 15611(FOR BRAIDED HOSE), 15612(FOR SPIRAL HOSE)
    MATERIAL CARBON STEEL 20#, OR STAINLESS STEEL
    STANDARD GB/T
    SURFACE TREATMENT CR+3 ZINC or Zn-Ni
    COLOR YELLOW or WHITE
    THREAD NPT
    SIZE AS PER BELOW SHEET
    PACKAGING DETAILS 60 CARTONS WRAPPED ON A WOODEN PALLET BY NYLON BELTS OR WRAPPED BY A BIG WOODEN CRATE
    CERTIFICATES ISO9001/2008
    FABRICATION TECH FORGED and CNC LATHING
    OEM SERVICE FBRICATED ACCORDING TO YOUR DRAWINGS OR SAMPLES
    LOADING PORT NINGBO/SHANGHAI
    MOQ 500pcs/ITEM FOR BIG SIZE ITEM, 2000 PCS/ITEM FOR SMALL SIZE ITEM
    LEADTIME USUALLY 25 DAYS AROUND AFTER ORDER CONFIRMATION. BUT IT DEPENDS ON ORDER VOLUME
    SUPPLY ABILITY 50000 SETS/ MONTH

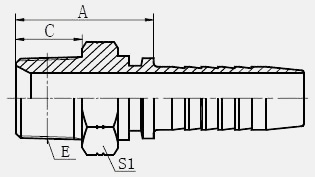

    PART NO. THREAD E HOSE BORE DIMENSIONS
    DN DASH A C S1
    15611-02-03 Z1/8"X27 5 03 22.5 10.5 12
    15611-02-04 Z1/8"X27 6 04 22.5 10.5 12
    15611-04-03 Z1/4"X18 5 03 27.5 15 17
    15611-04-04 Z1/4"X18 6 04 28 15 17
    15611-04-05 Z1/4"X18 8 05 28 15 17
    15611-04-06 Z1/4"X18 10 06 27 15 17
    15611-06-04 Z3/8"X18 6 04 28 16 19
    15611-06-05 Z3/8"X18 8 05 28 16 19
    15611-06-06 Z3/8"X18 10 06 30 16 19
    15611-06-08 Z3/8"X18 12 08 30.5 16 19
    15611-08-06 Z1/2"X14 10 06 34.5 19.5 22
    15611-08-08 Z1/2"X14 12 08 34.5 19.5 22
    15611-08-10 Z1/2"X14 16 10 36 19.5 22
    15611-12-08 Z3/4"X14 12 08 37.5 19.5

    27
    15611-12-10 Z3/4"X14 16 10 38 19.5 27
    15611-12-12 Z3/4"X14 20 12 38.5 19.5 27
    15611-12-16 Z3/4"X14 25 16 39.5 19.5 32
    15611-16-10 Z1"X11.5 16 10 45 25.5 36
    15611-16-12 Z1"X11.5 20 12 45 25.5 36
    15611-16-16 Z1"X11.5 25 16 44.5 25.5 36
    15611-20-16 Z1.1/4"X11.5 25 16 49.5 26.5 46
    15611-20-20 Z1.1/4"X11.5 32 20 49 26.5 46
    15611-24-24 Z1.1/2"X11.5 40 24 51 27.5 50
    15611-32-32 Z2"X11.5 50 32 55 27.5 65
