Sae100r1at/en 853 Non-skive Ferrules One Wrie Hose

Sae100r1at/en 853 Non-skive Ferrules One Wrie Hose

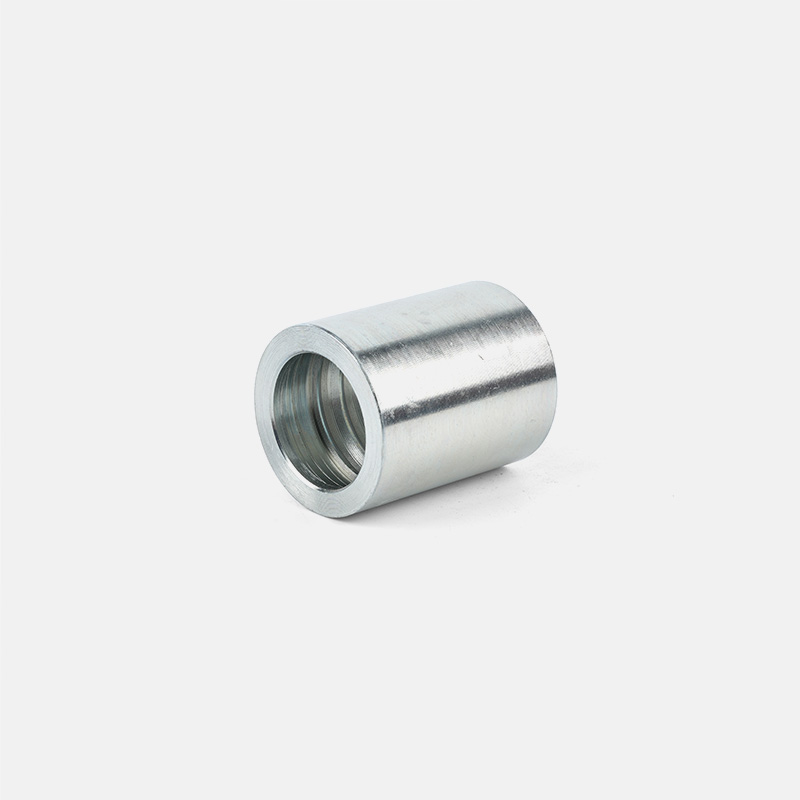

00110 Hydraulic hose ferrule is a type of hose ferrule used for hydraulic SAE 100R1AT one-wire braid hose.
Typically, a hose ferrule is crimped onto the end of a hydraulic hose to secure the hose to a fitting where a leak-free seal can be formed.
Feel free to ask any questions about the brake hose ferrule.
Features and Benefits:
• Secure
• Strength
• Easy to operate
• Customize
  • Sae100r1at/en 853 Non-skive Ferrules One Wrie Hose
Contact Us
  • Specification

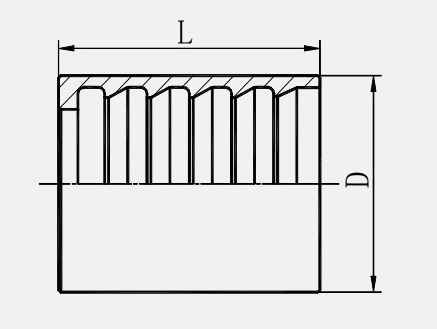

    PART NO. HOSE BORE DIMENSIONS
    DN DASH L

    00110-03

    		 5 03 27
    00110-04 6 04 30
    00110-05 8 05 31
    00110-06 10 06 32
    00110-08 12 08 34

    00110-10

    		 16 10 37
    00110-12 20 12 43
    00110-16 25 16 50
    00110-20 32 20 59
    00110-24 40 24 74
    00110-32 50 32 78
