• Specification

    PART

    NO.

    FLANGE

    SIZE

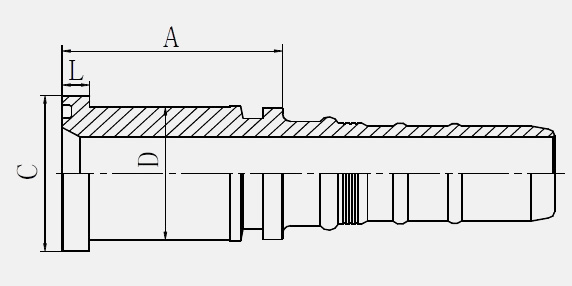

    HOSE BORE DIMENSIONS
    DN DASH A C D L
    87913-12-12 3/4" 20 12 58.5 41.3 31.7 14.3
    87913-16-12 1" 20 12 63 47.6 38 14.3
    87913-16-16 1" 25 16 64.4 47.6 38 14.3
    87913-20-16 1.1/4" 25 16 66.8 54 43

    14.3

    87913-20-20 1.1/4" 32 20 73.8 54 43 14.3
    87913-24-20 1.1/2" 32 20 80.6 63.5 50.8 14.3
    87913-24-24 1.1/2" 40 24 80.7 63.5 50.8 14.3
